Part 1 – Radix Sort

Note– you must complete this assignment on Linux. See here for how to setup and use Linux: Linux at Kenyon

Radix sort algorithm is a non-comparative sorting algorithm in computer science. It avoids comparison by creating and categorizing elements based on their radix. For elements with more than one significant digit, it repeats the bucketing process for each digit while preserving the previous step’s ordering until all digits have been considered.

Using queue to implement radix sort:

In radix sort algorithm, a list of integer numbers will be sorted based on the digits of individual numbers. Sorting is performed from least significant digit to the most significant digit.
Radix sort algorithm requires the number of passes which are equal to the number of digits present in the largest number among the list of numbers. For example, if the largest number is a 3 digit number then that list is sorted with 3 passes.

Step by Step Process

The Radix sort algorithm is performed using the following steps…

Step 1 – Define 10 queues each representing a bucket for each digit from 0 to 9.
Step 2 – Consider the least significant digit of each number in the list which is to be sorted.
Step 3 – Insert each number into their respective queue based on the least significant digit.
Step 4 – Group all the numbers from queue 0 to queue 9 in the order they have inserted into their respective queues.
Step 5 – Repeat from step 3 based on the next least significant digit.
Step 6 – Repeat from step 2 until all the numbers are grouped based on the most significant digit.

Example:

Consider the following list of unsorted numbers: 82, 901, 100, 12, 150, 77, 55, 23

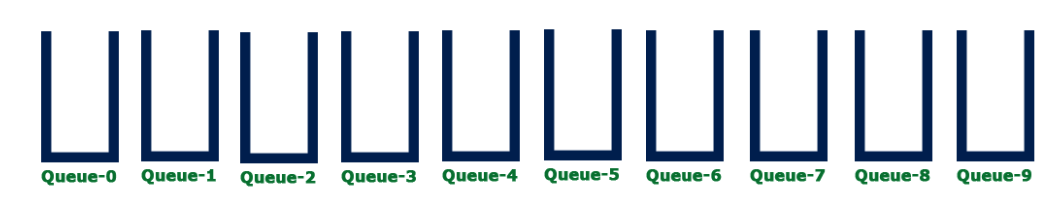

Step 1: Define 10 queues where each represents a bucket for digits 0 to 9;

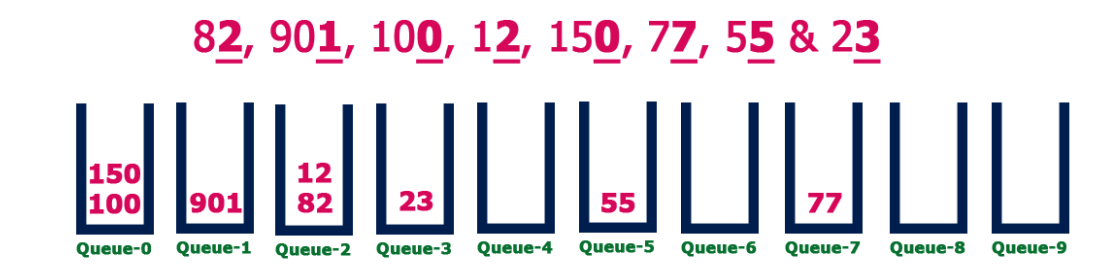

Step 2: Insert all the numbers of the list into respective queue based on the least significant digit of every number:

Group all the numbers from Queue-0 to Queue-9 in the order were inserted, creating a new list:
100, 150, 901, 82, 12, 23, 55, 77

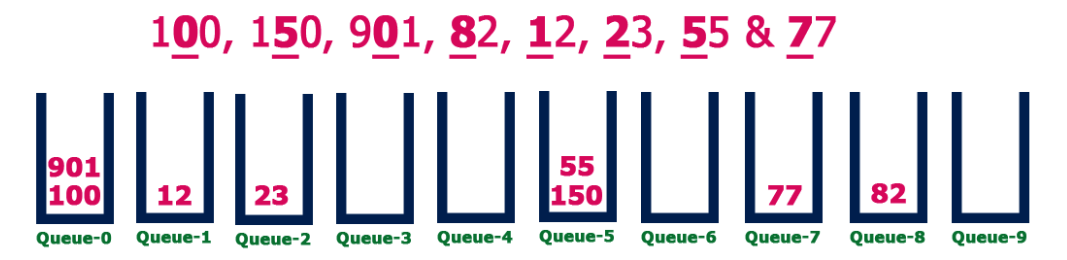

Step 3: Insert all the numbers of the list into respective queue based on the next least significant digit (tens column) of every number:

Group all the numbers from Queue-0 to Queue-9 in the order were inserted, creating a new list:
100, 901, 12, 23, 150, 55, 77, 82

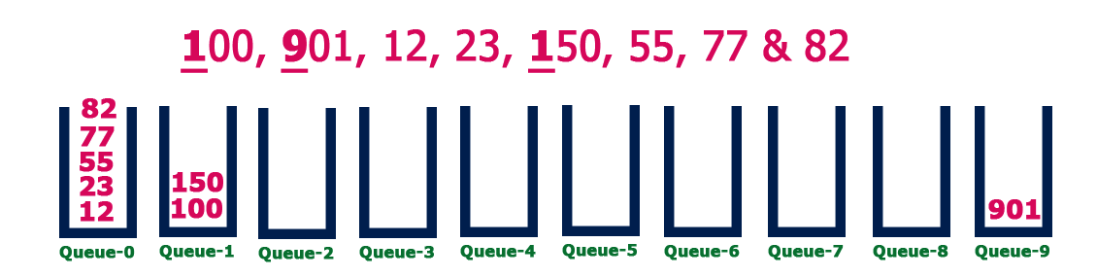

Step 4: Insert all the numbers of the list into respective queue based on the next least significant digit (hundreds column) of every number:

Group all the numbers from Queue-0 to Queue-9 in the order were inserted, creating a new list:
12, 23, 55, 82, 100, 150, 901

The list is now sorted!

Implement this algorithm (using queues) and test the Radix Sort Algorithm. The test function should have the following interface: Ask for d (number of digits) from the user. Ask for the quantity of n numbers to generate. Generate (and store in a container (e.g. array, vector)) the set of n random integers with at most d digits to be sorted. Print the array before it is sorted. Sort the array with the Radix Sort algorithm. Finally, print the sorted array. Format your output so that it looks neat and easy to read.

Run the program with the following inputs

Digits	Numbers
2	100
5	100
10	100
5	1000
10	10000

Turn in the runs in a file “runs.txt” in the github project.

Part 2: Simulation (Chapter 8 )

Github link

For this assignment read about simulation using priority queues start on page 472 in the text. We will be customers at a movie theater waiting in line for tickets. The authors start code is in the Github repository.

Write the definitions of the functions setWaitingTime, getArrivalTime, getTransactionTime, and getCustomerNumber of the class customerType defined in the section, ‘‘Application of Queues: Simulation.’’
Write the definitions of the functions getRemainingTransactionTime, setCurrentCustomer, getCurrentCustomerNumber, getCurrentCustomerArrivalTime, getCurrentCustomerWaitingTime, and getCurrentCustomerTransactionTime of the class serverType defined in the section, ‘‘Application of Queues: Simulation.’’
Write the definition of the function runSimulation to complete the design of the computer simulation program (see the section, ‘‘Application of Queues: Simulation’’). Test run your program for a variety of data.
Use AI (CHatGPT) to write a program to generate random simulation data and run the program 500 times, reporting the results.

Note: Sheet showing computation of arrivals

Run a simulation and turn in results.

Here is another program demonstating a simulation: https://github.com/Kenyon-CS/PeirceLines

Lab 8 – Part 1: Radix Sort (50 points total)

Category	Points
Correctness of Radix Sort & Queue Usage	20
Input Handling, Random Data Generation, Output & runs.txt	15
Code Style, Structure, and Commenting	10
Build Success & Repository Organization	5

Lab 8 – Part 2: Simulation (50 points total)

Category	Points
Correctness of customerType, serverType, and runSimulation Implementation	25
Random Data Generation, 500-run Experiment, and Report Output	15
Code Style, Structure, and Commenting	5
Build Success & Repository Organization	5
